California fires + Air Quality + Ada + Bluepill + PMS7003

Camp fire

The Camp fire has had a big effect on the Air Quality Index (AQI) in the Bay Area over the past week or so. AQI is typically measured as an entry in one of 7 bands:


To compute the AQI (typically cited from the PM2.5 #) a formula is used. See the wiki page above.

The PM2.5# is in µg/mfortunately there is a Chinese sensor, the PMS7003 that can provide PM1, PM2.5 and PM10 in those units:


So we have a sensor, we already have a Bluepill running Ada with an SPI screen to display the results.


The sensor is a $20 eBay purchase. Bluepills are < $2 as documented on this blog, screen is a little over $3. So for $25 or so you can build your own AQI meter.

Code is in:



Thursday, May 10, 2018

Bluepill+: Diagnosing bad solder joints


If your like me... a FW engineer attempting to do soldering then this might sound familiar. I have been replacing Bluepill STM32F103C8's with STM32L443CC chips. Its a hack as I do it as I use hot air for the remove and then residual pad solder for the stick down of the replacement.

Not surprisingly, some pads don't get good adhesion. Worse, some pads don't show this lack of adhesion until much later when you need the pad to do something useful.

The STM32 series are quite good, I think all user pads can be made into GPIOs. What if we wrote a program that toggled each pad every second and then walked the pins with a meter. So that program was written.

https://github.com/morbos/STM32/blob/master/L/L443/pinny/src/pinny.adb

That's great! Take a look at that code for the abstraction on the GPIOs that the Ada Device Library provides with

type GPIO_Points is array (Positive range <>) of GPIO_Point;

The magic decl in pinny is:

BP_Points : GPIO_Points :=
PB0 & PB1 & PB3 & PB4 & PB5 & PB6 & PB7 & PB8 &
PB9 & PB10 & PB11 & PB12 & PB13 & PB14 & PB15 &
PA0 & PA1 & PA2 & PA3 & PA4 & PA5 & PA6 & PA7 &
PA8 & PA9 & PA10 & PA11 & PA12 & PA15 &
PC13 & PC14 & PC15;


& concatenates items together, in this case of GPIO_Point making the init of the array BP_Points.

After that, we can just say:

Toggle(BP_Points);

The lib has code to accept the array and it will walk each element and toggle each one.

So that is every useful pin on a Bluepill highlighted above in the decl. With the abstraction of the pins to be a single element, initialization and group change becomes trivial and a small amount of user code.

A corridor conversation with a co-worker, Tyson Leistiko followed. As I described my software he mentioned I should group the GPIOs in such a way that neighboring pins toggle asymmetrically and in that way look for non 3v, 0v pins indicating some form of pin bridging. So pinny was adapted easily to add two hand picked sets that reflect the property of being neighbors to the other set.

As so:

Set1 : GPIO_Points :=
PC13 & PC15 & PA1 & PA4 & PA6 & PB0 & PB10 & PB12 &
PB14 & PA8 & PA10 & PA12 & PB3 & PB5 & PB7 & PB9;
and:

Set2 : GPIO_Points :=
PC14 & PA0 & PA2 & PA3 & PA5 & PA7 & PB1 & PB11 &
PB13 & PB15 & PA9 & PA11 & PA15 & PB4 & PB6 & PB8;

Post those decl's we can preload the sets as so:


Clear (Set1);
Set (Set2);

Then both pinny programs go into a loop allowing you to probe all the pins for the 3v -> 0v -> 3v .. pattern.

loop
Toggle (BP_Points);
delay until Clock + Milliseconds (1000);
end loop;

https://github.com/morbos/STM32/blob/master/L/L443/pinny2/src/pinny2.adb

It should be said my friend Eric Schlaepfer mentioned that the EE way of doing this is to probe
the ESD diodes and look for pad to pin connectivity that way. My solution: a FW engineer caused the
problem, a FW way was used to repair the problem 😀

Saturday, April 21, 2018

Tracing a Bluepill

Did you know the lowly STM32F103C8 has non-invasive trace logic along for the ride? Did you also know that via program control:

1) Trace can be enabled out to a pin on the board (PB3).
2) 32 channels can be used to emit 32, 16 or 8bit (char) values from running code. Useful to monitor values from your code.
3) A cycle count can be emitted
4) Data Watchpoints can also be reported. See a picture below.



Showing SysTick exception handling:

Showing a sensor range value being emitted on channel 16 (that's the max 1FFE in mm's btw)

Showing a watchpoint on the read modify write of the Green LED on PC13 (HW watchpoint on: BSRR @0x40011010).

Also an Overflow is seen (first time I have seen that actually). Can be mitigated by bumping the output rate.



Bluepill shown with a VL53L10X range sensor. The trace is the yellow wire connected to TRACESWO PB3 and green wire is connected to GPIO1 from the sensor. That is plumbed up to go low when a new sample is ready. Based on the range value, the green LED is lit or not. (a version of this is used in my garage to detect if the car is far enough along to close the door w/o striking the rear or the vehicle).

Use

So a board that can cost $1.27 on Taobao has all this and more.

One omission on such an inexpensive design is ETM (Embedded Trace Macrocell). This is featured on many of the larger ST designs. Its easy to check if it exists as the register space at E0041000 will have non-zero contents. On a bluepill, that space is all zero.

No matter, Instruction Trace Macrocell (ITM) is available. This can report the PC of the running program at a sub-sampled rated.

ITM also reports when the code dips into the exception handler as shown above.

Usually though when configured, the diet is a steady stream of PC's.

Some observations of this technology.

1) You need background/sample code. A hackaday post in 2015 on the great work by Petteri Aimonen:
a)  Showing how enable the Trace Port Interface Unit TPIU/ITM and ETM
b) Adding .py scripts to Pulseview to permit GUI viewing of trace output as seen above in the images.
2) ETM, Petteri used an F1 Value Line part per his blog. I had no luck getting ETM data out of that part.

Some observations:1) You must have a debug connection to the target to get SWO to emit trace.
2) It's possible to muck around with rate settings. You can get a rate that is unreal, I had a Bluepill+ with trace @80Mhz coupled with a minimally subdivided PC. You get a firehose of PCs coming out. Perhaps one very 20-30instrs or so. Amazing.
3) My code is a translation of Petteri's C example into Ada.

https://github.com/morbos/STM32/tree/master/F/F103/vl53l0x_trace_f103


Using Pulseview

The pretty picture above is done with Petteri's work. You can install Pulseview for Linux or Windows (also you can build the source (as I did to a Raspberry pi3)). The trick to decoding the trace is to have a UART capture of PB3 off of the traceswo port. Get that UART capture into Pulseview. For my path, I use an unsupported logic capture, the Salae logic pro 16. No matter, it exports binary and then its a simple matter to convert it to a .sr file that Pulseview can read:

Hedley@FASTER ~/trace
$ split --numeric-suffixes=1 --suffix-length=1 --bytes=4M untitled.bin logic-1-

Hedley@FASTER ~/trace
$ zip trace.sr version metadata logic-1-*
updating: version (stored 0%)
updating: metadata (deflated 8%)
updating: logic-1-1 (deflated 97%)
updating: logic-1-2 (deflated 97%)
updating: logic-1-3 (deflated 97%)
updating: logic-1-4 (deflated 97%)
updating: logic-1-5 (deflated 97%)
updating: logic-1-6 (deflated 97%)
updating: logic-1-7 (deflated 100%)
updating: logic-1-8 (deflated 100%)
updating: logic-1-9 (deflated 100%)

Hedley@FASTER ~/trace
$ cat metadata
[global]
sigrok version=0.3.0

[device 1]
capturefile=logic-1
total probes=8
samplerate=50 MHz
probe1=SWO
probe2=GPIO1
unitsize=1

So once in Pulseview we can add a decoder to the UART. Just add ARM ITM and set the baudrate to your capture speed (in my case, 8Mhz). Then let Pulseview's decoder show you the trace.

Notes:

https://hackaday.com/2015/03/09/execution-tracing-on-cortex-m-microcontrollers/

Friday, February 23, 2018

The Bluepill+

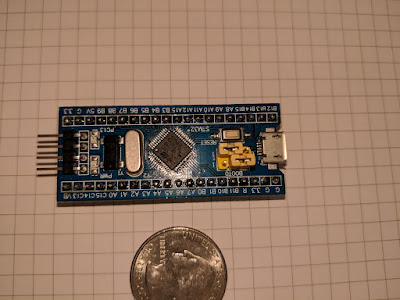

The STM32L443CC 'Bluepill+'



Following up from the work I did on getting Ada going on a Bluepill.

 http://www.hrrzi.com/2017/11/ada-on-2-ebay-bluepill-board.html

Is a Bluepill a fixed entity?

Looking at the SoC the Bluepill uses we see it is a Cortex-M3 running at 72Mhz with 128k of flash and 20k of ram. There are newer STM32 chips all the way out to Cortex-M7's. I have this tool from ST called the ST MCUFinder. You can screen all their parts by different parameters. I had already hacked Ada onto the STM32L432 for the Make-with-Ada contest last year so the L series was still quite fresh in my mind. So looking at the package the STM32F103C8 on a stock bluepill was there a newer, pin compatible, STM32 cpu across the family that could drop in and work in place of the original? I will spare dear reader the suspense, indeed there are a bunch of parts that have the same footprint.

The candidate CPU for Bluepill+ STM32L443CCT6

That part uses a Cortex-M4F, runs at 80Mhz with 256k of flash and 64k of ram. Plus it has more peripherals than the STM32F103C8. This 443CC has 2 12 bit DACs. I like 2 DACs since you can make oscilloscope vectors with that HW.

Specs

  • Core: ARM® 32-bit Cortex®-M4 CPU with FPU, Adaptive real-time accelerator (ART Accelerator™) allowing 0-wait-state execution from Flash memory, frequency up to 80 MHz, MPU, 100DMIPS and DSP instructions
  • Performance benchmark
    • 1.25 DMIPS/MHz (Drystone 2.1)
    • 273.55 CoreMark® (3.42 CoreMark/MHz @ 80 MHz)
  • Energy benchmark
    • 176.7 ULPBench® score
  • Clock Sources
    • 4 to 48 MHz crystal oscillator
    • 32 kHz crystal oscillator for RTC (LSE)
    • Internal 16 MHz factory-trimmed RC (±1%)
    • Internal low-power 32 kHz RC (±5%)
    • Internal multispeed 100 kHz to 48 MHz oscillator, auto-trimmed by LSE (better than ±0.25 % accuracy)
    • Internal 48 MHz with clock recovery
    • 2 PLLs for system clock, USB, audio, ADC
  • Up to 83 fast I/Os, most 5 V-tolerant
  • RTC with HW calendar, alarms and calibration
  • LCD 8× 40 or 4× 44 with step-up converter
  • Up to 21 capacitive sensing channels: support touchkey, linear and rotary touch sensors
  • 11x timers: 1x 16-bit advanced motor-control, 1x 32-bit and 2x 16-bit general purpose, 2x 16-bit basic, 2x low-power 16-bit timers (available in Stop mode), 2x watchdogs, SysTick timer
  • Memories
    • 256 KB single bank Flash, proprietary code readout protection
    • 64 KB of SRAM including 16 KB with hardware parity check
    • Quad SPI memory interface
  • Rich analog peripherals (independent supply)
    • 1× 12-bit ADC 5 Msps, up to 16-bit with hardware oversampling, 200 μA/Msps
    • 2x 12-bit DAC, low-power sample and hold
    • 1x operational amplifier with built-in PGA
    • 2x ultra-low-power comparators
  • AES: 128/256-bit key encryption hardware accelerator
  • 17x communication interfaces
    • USB 2.0 full-speed crystal less solution with LPM and BCD
    • 1x SAI (serial audio interface)
    • 3x I2C FM+(1 Mbit/s), SMBus/PMBus
    • 4x USARTs (ISO 7816, LIN, IrDA, modem)
    • 1x LPUART (Stop2 wake-up)
    • 3x SPIs (4x SPIs with the Quad SPI)
    • CAN (2.0B Active) and SDMMC interface
    • SWPMI single wire protocol master I/F
    • IRTIM (Infrared interface)
  • 14-channel DMA controller
  • True random number generator
  • CRC calculation unit, 96-bit unique ID

Costs

If you look on eBay for the price of a Bluepill, its just a tidge over $2. Last I checked, $2.13. Take a look at the 10k quantity for STM32F103C8's btw. Its at that price(!!!). So a Bluepill has:
1) a pcb
2) STM32F103C8
3) 8Mhz xtal
4) 32khz xtal
5) 5v - 3v reg
6) 2 LEDs
7) reset button
8) USB header

All for the 10k unit quantity of 2) above...

Anyway, the donor CPU an STM32L443CCT6 is about $2.61 in 10,000 unit qty. For me buying 5 or so was about $5 to $6 each so really a Bluepill+ costs about 8$ after surgery. Even at $8 this board is pretty good for what you get.

The donor

A $2 bluepill board was sacrificed to be a donor for Bluepill+ updating. Basically, since the parts are pin compatible you need only use a cheap hot air station (these are sub $100 on eBay) and some tweezers. Get a helper to spread the hot air and gently tweeze the package away from the board as the solder liquefies. I had also tin foiled the rest of the board to avoid stray heat. Once off the board, the donor IC is placed on the footprint (carefully!) and then using an iron, tack down the legs to the liberated pads. The residual solder is enough to make good contact I found even after cleaning the pads up a little bit post removal.

Porting Ada

So, we have a new CPU. Lets get Ada going on it! We will need some low level code changes to get the board initialized to be useful. Things like the PLL has to get locked to the right clock, other L series SoC IP needs to enabled etc. Fortunately, there are ample examples in Ada_Drivers_Library on how other F4 and F7 series cores are handled. The STM32L series is modern relative to the F1 and F4 and shares some commonality with the F7. So we look closely at the F7 when in doubt about init seqs. One easy thing to get going is to grab the SVD files from ST for the L443. These are right on the SoCs ST webpage.  Once you have them, you can run svd2ada to generate the headers, one set for Ada_Drivers_Library and one for the embedded runtimes. I know that this method has be modernized but I have not yet moved over to bb_runtimes at this time. I also wrote a tool in Ruby that sucks in the SVD fie and generates a gdb script. That script is personalized for your SoC, it generates reg dump log files of the entire SoC and saves them to disk. Subsequently, another tool pulls in the svd and the logs and generates a human readable hierarchy dump of each reg. This is documented on the www.hrrzi.com blog. So once the svd files are generated porting begins for the various IP blocks in the design The key ones to port are GPIO, SPI, I2C, TImers, ADC, DMA. This work took some time but I leveraged my work for Make with Ada (an STM32L432). At this point there is parity between my Bluepill port and the Bluepill+ port. All the code with examples is in my STM32 tree:


with libraries:


and


Also the Ruby SVD reader is here:

https://github.com/morbos/ruby

One technique I found helpful in my Ada port was that ST via its CubeMX and free SW dev tools has lots of examples. If you get stuck with some IP thats not working in Ada. Build a CubeMX example that initializes or uses the IP you need to port. Once thats up and running on your board, use the Ruby scripts I mentioned to dump the ST example codes reg settings. First you can use that as a reference, and later use logs2dump and diff your port to the example code. Where there are diffs might expain why your port is not working.


Openocd

Openocd 0.10.0 needed some minor mods to get attached to the bluepill+ Basically, the flash code needed to be told about the STM32L443's flash size based on the unknown part number. Also the target script needed some changes. I will add more to this entry later about this.
